| Chemistry | LiFePO4 |
| Voltage | 6.4V |
| Capacity | 5400mAh (@0.5C discharge) |
| Energy | 69.12Wh |
| Dimension | 70(L)x47(W)x101(H)mm |
| Weight | Approx.350g |

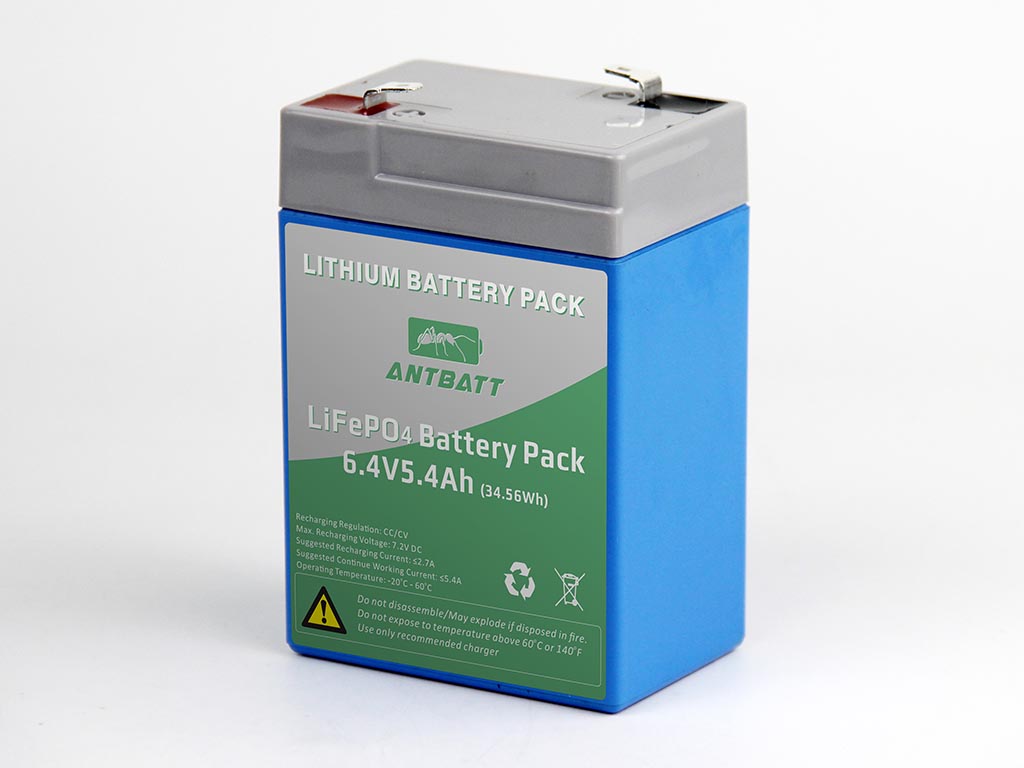

We use 6 pieces of LiFepO4 18650-3.2V-1800mAh cells in a 2S3P configuration for the battery pack assembly.
The enclosure size is 70 x 47 x 101mm, which is the same size as a Lead-acid 6V4.5Ah battery. But a lead-acid battery 6V4.5Ah weighs 0.72kg, the LiFePO4 6.4V5.4Ah weighs 350g. The lead-acid 1-hour rate discharge capacity is around 2.6Ah, while LiFePO4 1 hour rate capacity is still 5.4Ah.
LiFePO4 battery has a cycle life 5~10 times to the lead-acid battery.
Although the LiFePO4 battery’s up-front cost might is higher, it saves money and rewards you more convenience in long-term consideration.
| Items | Parameters |
|---|---|
| Nominal Voltage | 6.4V |
| Rated Capacity | 4500mAh (@0.5C discharge) |
| Rated Energy | 34.56Wh |
| Impedance @AC 1000Hz | ≤60mΩ |
| Cycle Life 80% Retention, 25℃ | ≥1,600@0.2C（100%DOD） |
| ≥3,200@0.2C（80%DOD） | |
| ≥5,600@0.2C（50%DOD） | |
| Charge Voltage | 7.2VDC |
| Charge Mode | 0.2C to 7.2V, then 7.2V,charge current to 0.01C (CC/CV) |
| Charge Current | 1.1A |
| Maximum Charge Current | 2.7A |
| Continuous Discharge Current | ≤5.4A |
| Peak Discharge Current | 5.4-16.2A(≤20ms) |
| Recommended Discharge Cut-off Voltage | 5V |
| Cell & Configuration | 26650 3.2V 1800mAh in 4S3P |
| Housing Material | ABS Plastics |
| Dimension | (70±1)×(47±1)×(101±2)mm |
| Weight | Approx. 350g |
| Charge Terminal | T1/T2 |
| Discharge Terminal | T1/T3 |
| Recharge Operation Temperature | 0~45℃ |
| Discharge Operation Temperature | -20~60℃ |
| Storage Temperature | -20~40℃ |
