| Chemistry | LiFePO4 |
| Voltage | 12.8V |
| Capacity | 9000mAh (@0.5C discharge) |
| Energy | 115.2Wh |
| Dimension | 151(L)x65(W)x99(H)mm |
| Weight | Approx. 1300g |
We selected this high-capacity LiFePO4 battery 18650-3.2V-1800mAh cell to assemble this battery pack. This provides us a high capacity 12.8V 9Ah Battery Pack, while it only has 7.5Ah capacity previously. And the performance is as amazing as usual, we can maximally use a 25A BMS for the battery pack, and it maximally allows 4 of them in series connection.
This is also a perfect replacement battery for the lead-acid 12V7Ah battery. LiFePO4 has a higher capacity and stronger power within the same physical limitation. And the LiFePO4 cycle life performance is more than 6 times the lead-acid ones.
Although the up-front cost might is higher compared with the Lead Acid one, it saves money and rewards you more convenience in long-term consideration.
| Items | Parameters |
|---|---|
| Nominal Voltage | 12.8V |
| Rated Capacity | 9000mAh (@0.5C discharge) |
| Rated Energy | 115.2Wh |
| Impedance @AC 1000Hz | ≤90mΩ |
| Cycle Life 80% Retention, 25℃ | ≥1,600@0.2C（100%DOD） |
| ≥3,200@0.2C（80%DOD） | |
| ≥5,600@0.2C（50%DOD） | |
| Charge Voltage | 14.4±0.15VDC |
| Charge Mode | 0.2C to 14.4V, then 14.4V,charge current to 0.01C (CC/CV) |
| Charge Current | 1.8A |
| Maximum Charge Current | 4.5A |
| Continuous Discharge Current | 4.5A |
| Max. Continuous Discharge Current | 9A |
| Peak Discharge Current | 9-27A(≤20ms) |
| Recommended Discharge Cut-off Voltage | 10V |
| Cell & Configuration | 26650 3.2V 1800mAh in 4S5P |
| Housing Material | ABS Plastics |

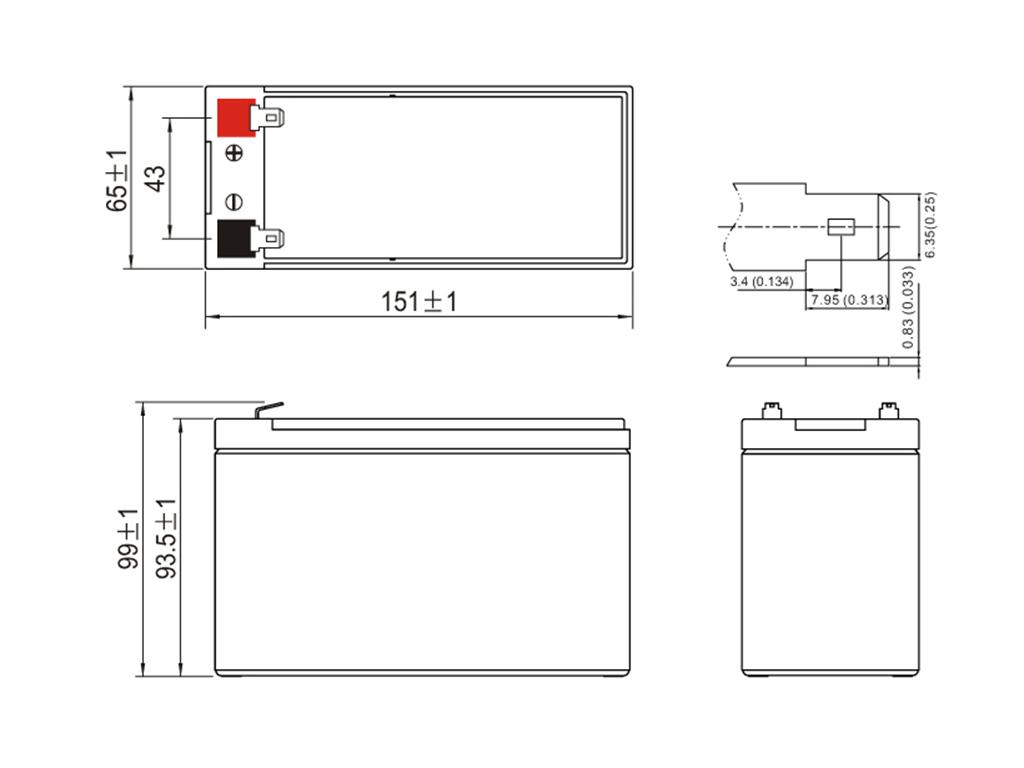

| Dimension | (151±1)×(65±1)×(93±2)mm |
| Weight | Approx. 1300g |

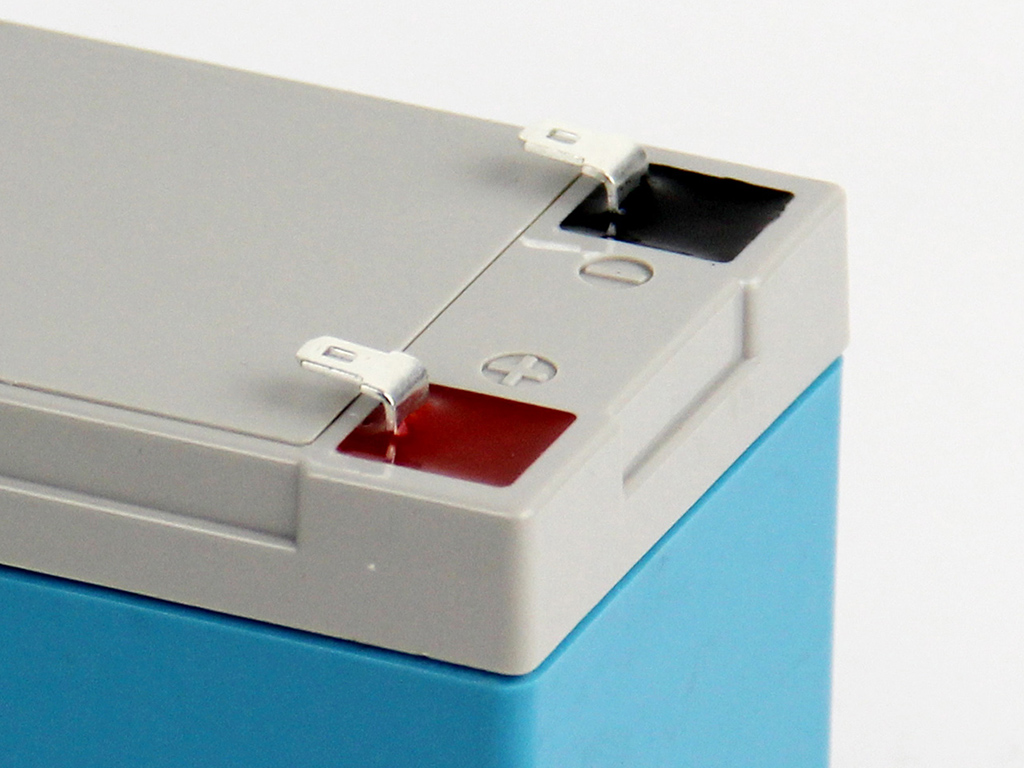

| Charge Terminal | T1/T2 |
| Discharge Terminal | T1/T3 |
| Recharge Operation Temperature | 0~45℃ |
| Discharge Operation Temperature | -20~60℃ |
| Storage Temperature | -20~40℃ |
| Please note that: the above are our regular parameters, which can be customized according to actual requirements. Please consult our technical engineers for details. | |
