| Nominal Voltage | 48V |
| Rated Capacity (0.5C) | 165Ah |
| Rated Energy | 7920Wh |
| Cycle Life (0.5C 100%DOD) | >2500 cycles |
| Max. Charge Current | 80A |
| Max. Continuous Current | 165A |
| Max. Pulse Current | 350A (<10 seconds) |
| Battery Dimension | 732×360×234.5 mm |
| Approx.Weight | 70.5kg |

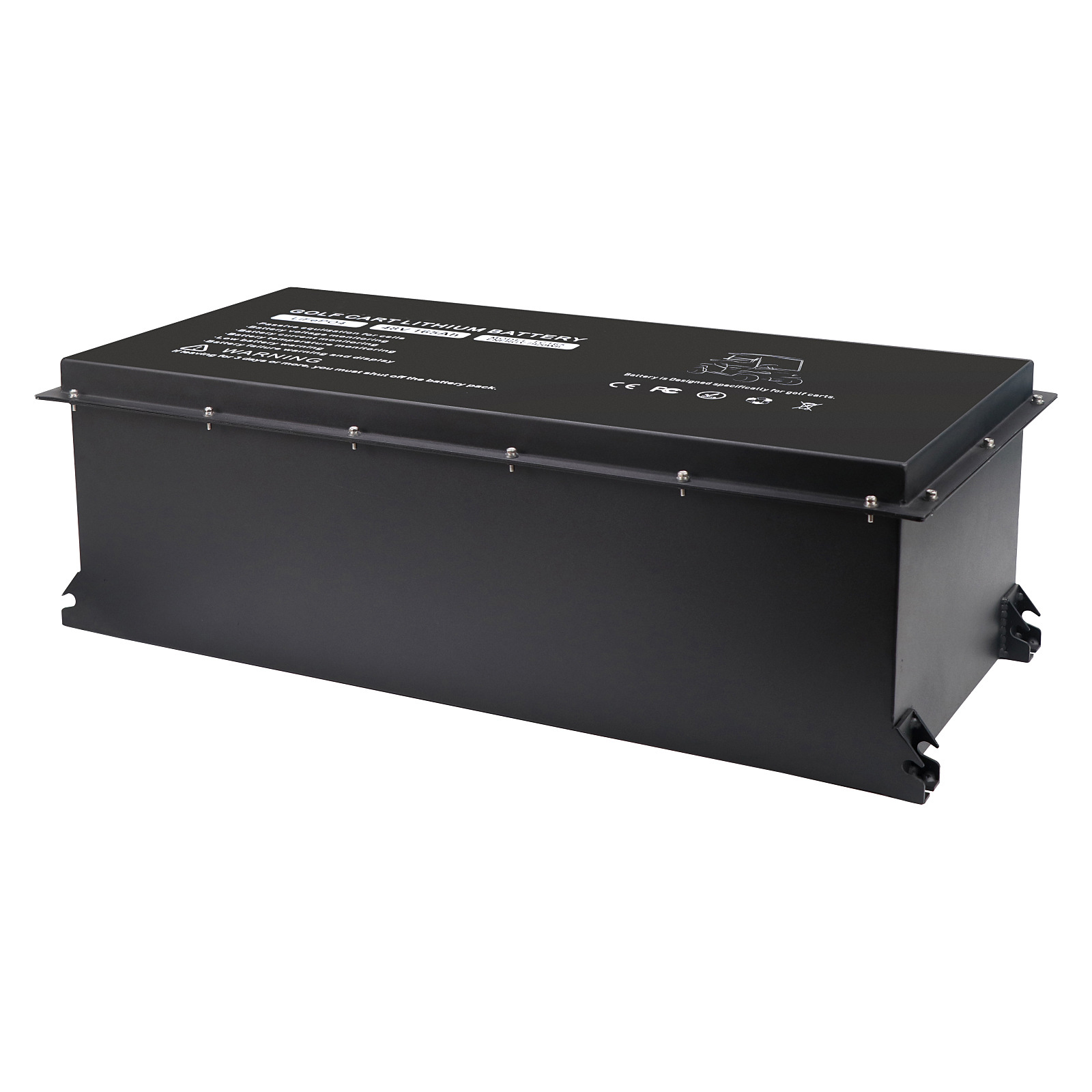

TC165-L4 LiFePO4 Battery Pack — Power Built for Golf Carts
The TC165-L1 is a 48V 165Ah LiFePO4 power battery pack engineered for golf cart applications. Built with a 15S1P configuration using IFP48173166-165Ah cells, it delivers a typical capacity of 165Ah (160Ah minimum) with a nominal voltage of 48V, ensuring reliable, long-lasting power for daily use.
The pack features a robust, integrally structured enclosure with a separate control box, weighing approximately 70.5kg for the main body plus 2kg for the control unit. It supports CC-CV charging up to 54.75V and standard discharge to 40.5V, with a cycle life exceeding 2500 cycles at 80% capacity retention.
Equipped with a comprehensive PCM protection system covering overcharge, over-discharge, over-current, and over-temperature protection, plus a 4320-minute sleep mode, the TC165-L1 combines safety, durability, and intelligent management.
| Category | Parameter | Specification |
|---|---|---|
| Electrical Characteristics | Nominal Voltage | 48V |
| Rated Capacity (Typical) | 165Ah | |
| Rated Capacity (Minimum) | 160Ah | |
| Rated Energy | 7920Wh (48V × 165Ah) | |
| Inner Resistance | ≤150mΩ | |
| Cycle Life (0.5C 100%DOD) | >2500 cycles | |
| Standard Charge | Charge Voltage | 54.75V |
| Charge Mode | CC/CV | |
| Max. Charge Current | 0.2C | |
| Standard Discharge | Max. Continuous Current | 165A |
| Max. Pulse Current | 330A (10s) | |
| Discharge Cut-off Voltage | 37.5V | |
| Mechanical | Cell & Configuration | IFP48173166-165Ah / 15S1P |

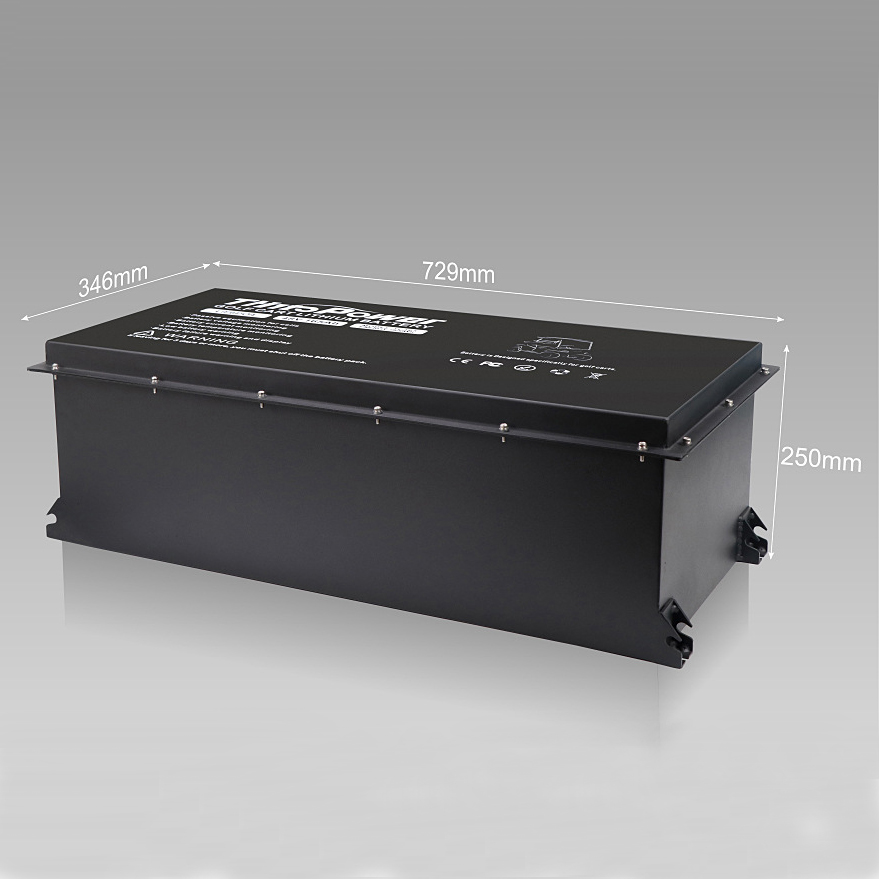

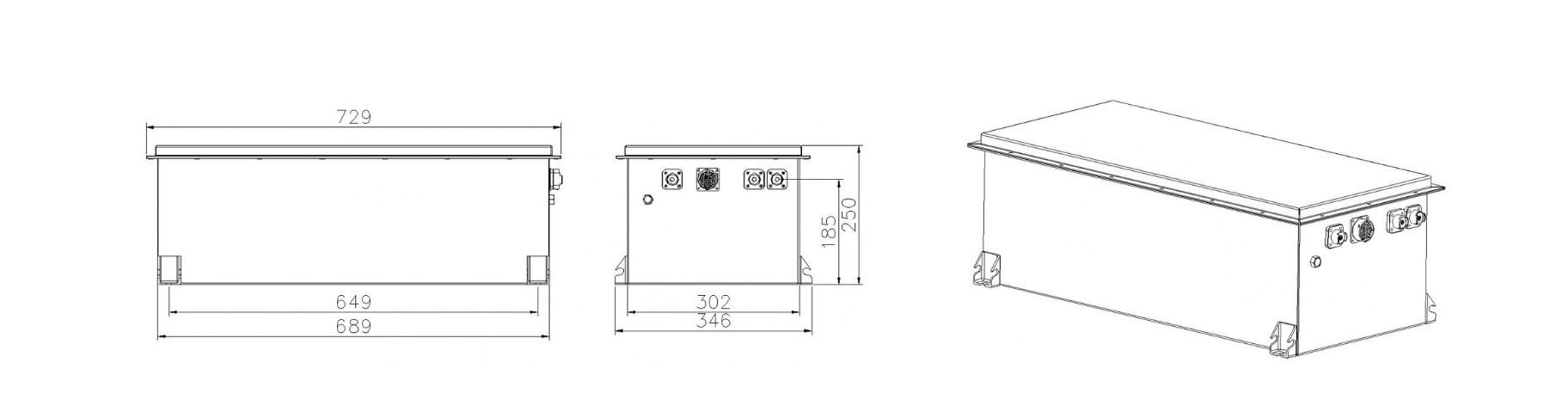

| Battery Dimension | 729×346×250 mm (参考图纸) | |
| Enclosure Material | Metal | |
| Weight | 70.5kg | |

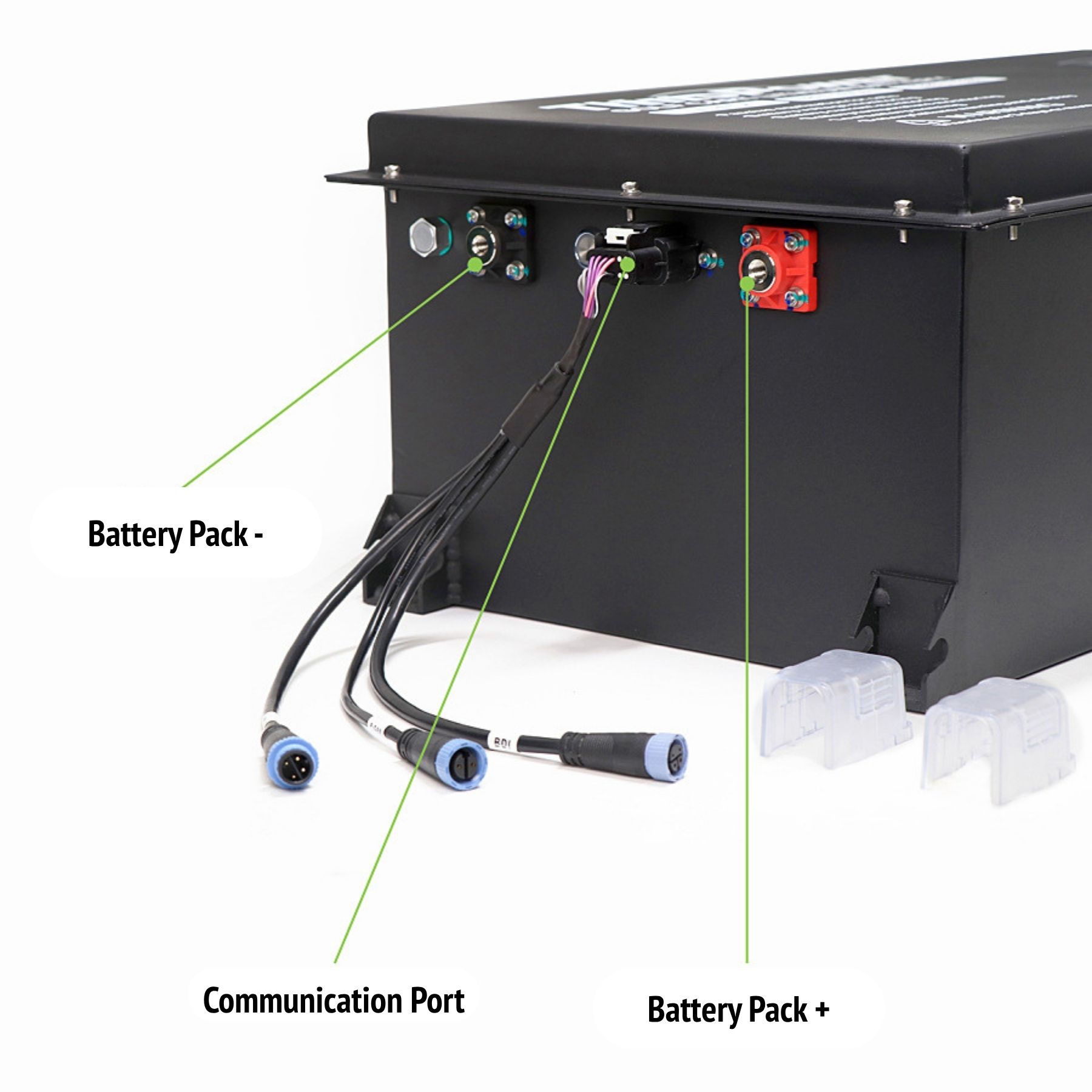

| Terminals | As drawing | |
| Environmental | Charge Temperature | 0℃–45℃ |
| Discharge Temperature | -20℃–60℃ | |
| Storage Temperature | -20℃–40℃ (建议) | |
| Water Dust Resistance | IP66 | |

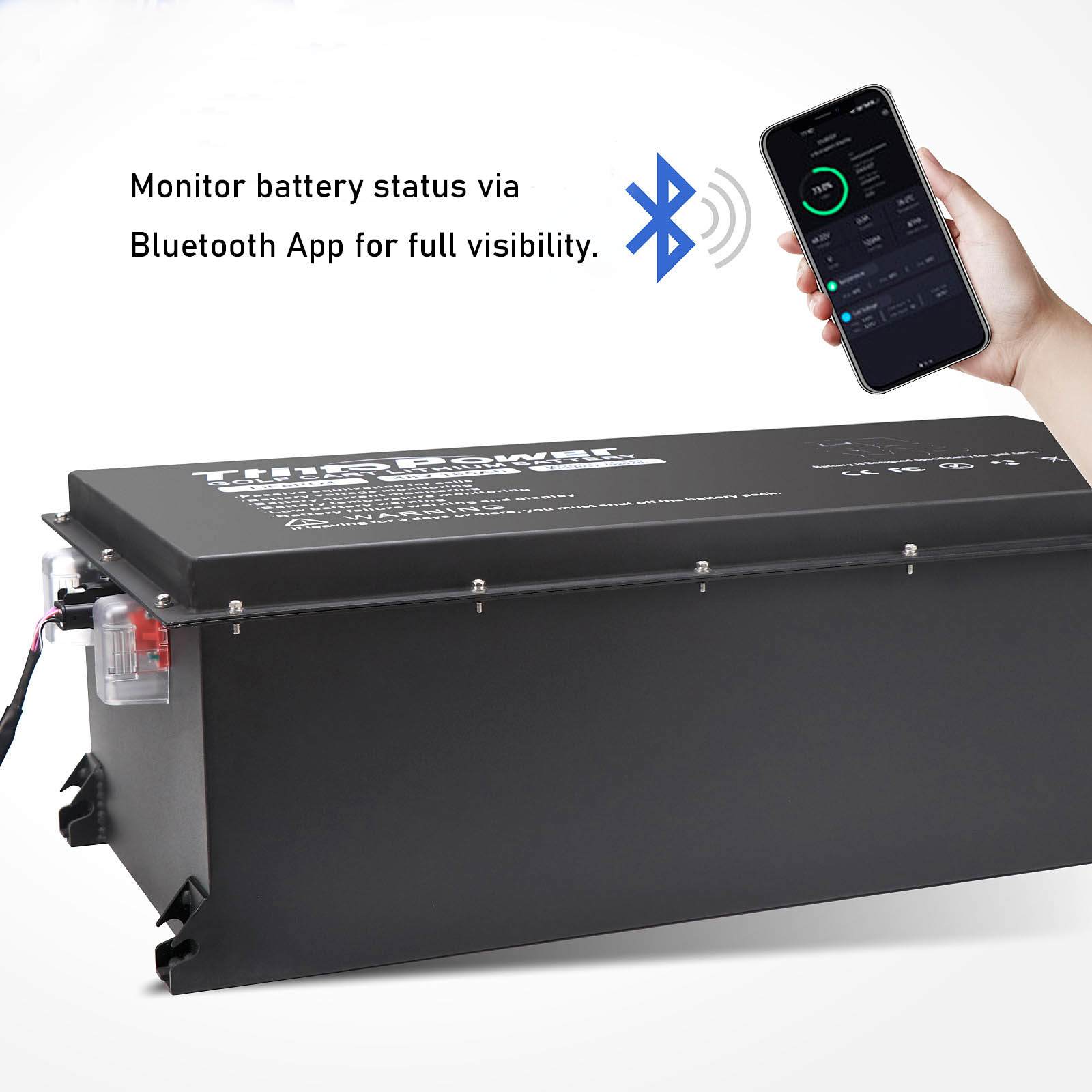

| Protocol and Display | Bluetooth App | Yes |
| Extending Dashboard Display | Optional | |
| Communication Protocol | CANBUS |
