X12-6 LiFePO4 12.8V 6Ah 76.8Wh

Basic Information

Nominal Voltage12.8V
Rated Capacity (0.5C)6Ah
Rated Energy76.8Wh
Cycle Life (0.5C 100%DOD)>1500 cycles
Max. Charge Current6A
Max. Continuous Current10A
Battery Dimension87×55×68mm
TerminalsT1 or T2
Approx.Weight755g

Description

Upgrade your 12V lead-acid setup with the 12.8V 6Ah LiFePO4 battery pack — a compact, lightweight drop-in replacement engineered for longer life and safer performance.

Built with premium 32700 cylindrical LiFePO4 cells (4S1P), this pack delivers over 1500 cycles — roughly 5× longer than equivalent SLA batteries — slashing total cost of ownership. At just 755g and 87×55×68mm, it weighs less than half a comparable lead-acid battery while maintaining full 6Ah capacity, making it ideal for space- and weight-sensitive designs.

LiFePO4 chemistry inherently resists overcharge, overheating and thermal runaway, reinforced by multi-layer system protection against over-current, over-voltage and short circuits. It delivers 10A continuous discharge with 12A pulse (<1s), and supports charging from 0°C to 45°C, discharging from −20°C to 60°C.

Fitted with T1 or T2 terminals, it directly replaces standard 12V 5–7Ah SLA batteries in UPS systems, security alarms, portable power tools, mobility devices and off-grid lighting.

Product Datasheet

Electrical CharacteristicsNominal Voltage12.8V
Rated Capacity (0.5C)6Ah
Rated Energy76.8Wh
Inner Resistance≤120mΩ
Self-Discharge Rate/Month<3.5%/Month
Cycle Life(0.5C 100%DOD*)>1500 cycles
Standard ChargeCharge Voltage14.4V
Charge ModeCC/CV*
Standard Charge Current3A
Max. Charge Current6A
Standard DischargeMax. Continuous Current10A
Max. Pulse Current12A (<1s)
Discharge Cut-off VoltageAbout 10V
MechanicalCell & Configuration32700-3.2V-6000mAh-4S1P

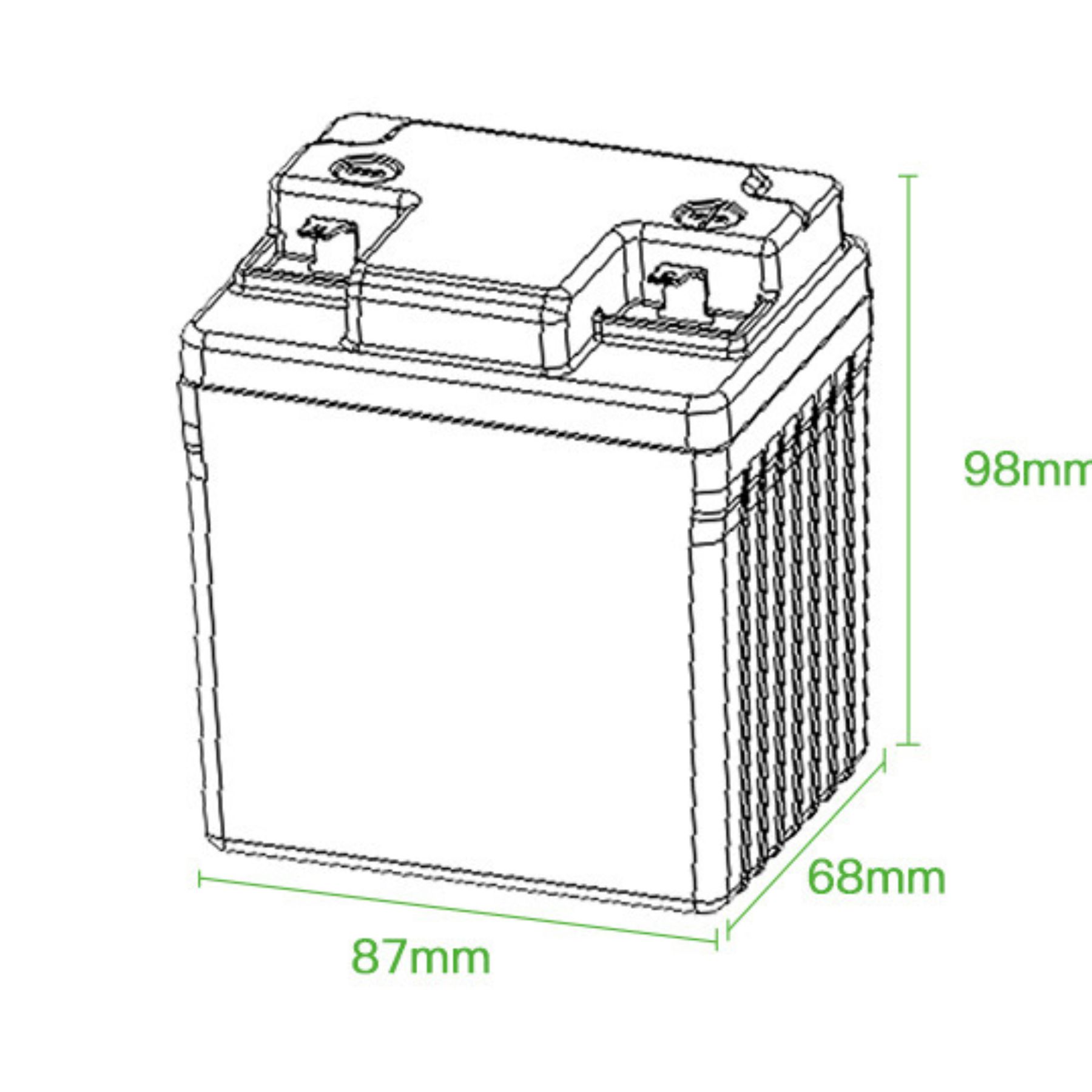

Dimension87×55×68mm
Enclosure MaterialABS Plastics
Weight755g
TerminalsT1 or T2
EnvironmentalCharge Temperature0℃~45℃
Discharge Temperature-20℃~60℃
Storage Temperature0℃~45℃
Water Dust ResistanceIP56
