| Nominal Voltage | 12.8V |
| Rated Capacity | 36±2Ah(0.2C) |
| Rated Energy | About 460.8Wh |
| Impedance @AC 1000Hz | ≤40mΩ |
| Cycle Life 80% Retention, 25℃ | ≥1,600@0.2C（100%DOD） |
| ≥3,200@0.2C（80%DOD） |
| ≥5,600@0.2C（50%DOD） |
| Charge Voltage | 14.4±0.15VDC |
| Charge Mode | 0.2C to 14.4V, then 14.4V,charge current to 0.01C (CC/CV) |
| Charge Current | 7.2A |
| Maximum Charge Current | 18A |
| Continuous Discharge Current | 18A |
| Max. Continuous Discharge Current | 36A |
| Peak Discharge Current | 36-108A(≤20ms) |
| Recommended Discharge Cut-off Voltage | 10V |
| Cell & Configuration | 18650 3.2V 1800mAh in 4S20P |
| Housing Material | ABS Plastics |

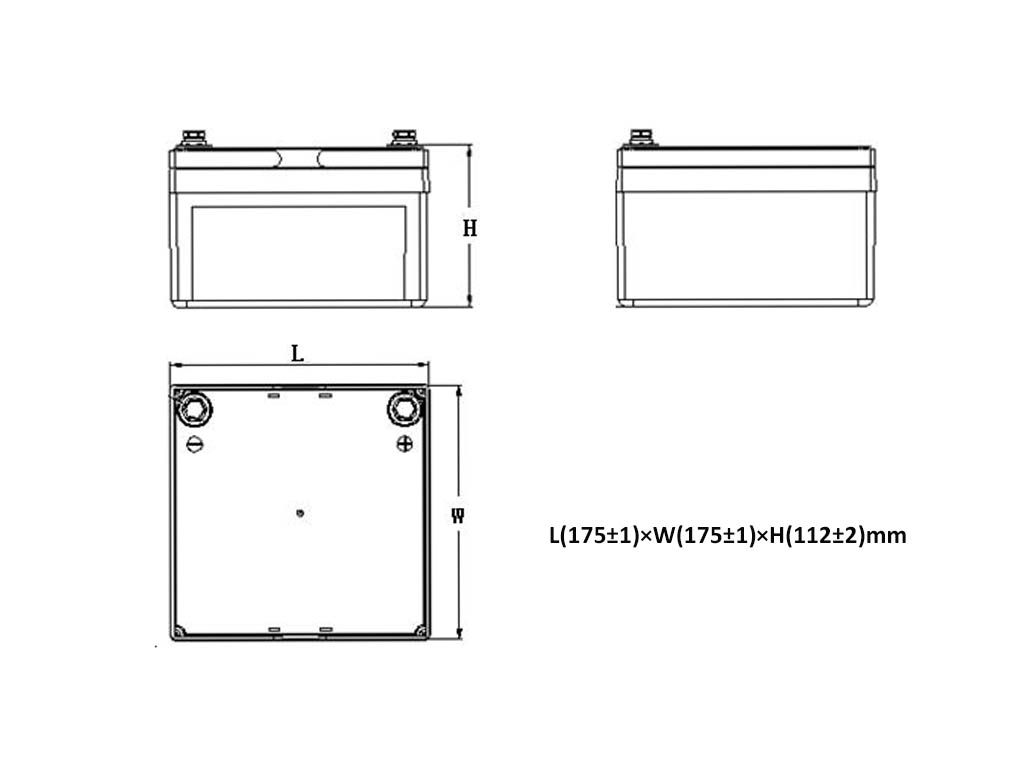

| Dimension | (175±1)mm×(175±1)mm×(112±2)mm |
| Weight | 4.2±0.1kg |
| Charge Terminal | M8 |
| Discharge Terminal | M8 |
| Recharge Operation Temperature | 0~45℃ |
| Discharge Operation Temperature | -20~60℃ |
| Storage Temperature | -20~40℃ |
| Please note that: the above are our regular parameters, which can be customized according to actual requirements. Please consult our technical engineers for details. |
